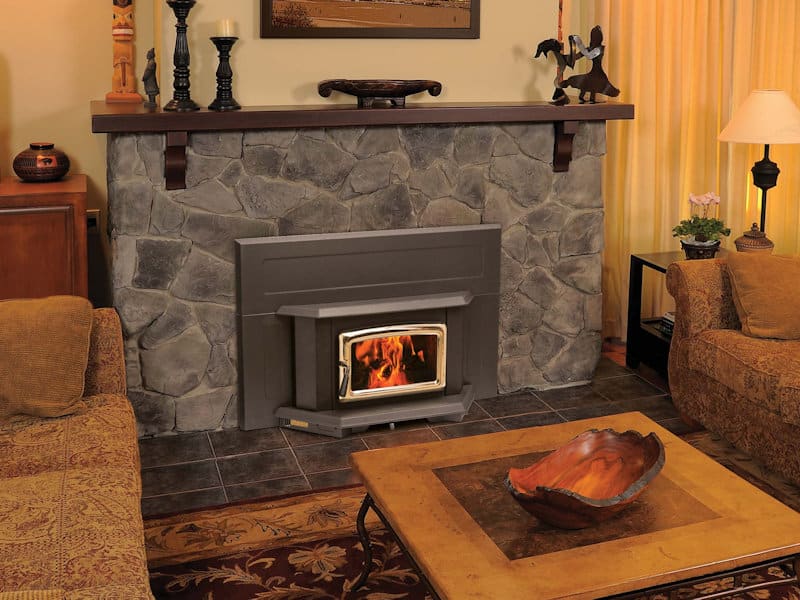

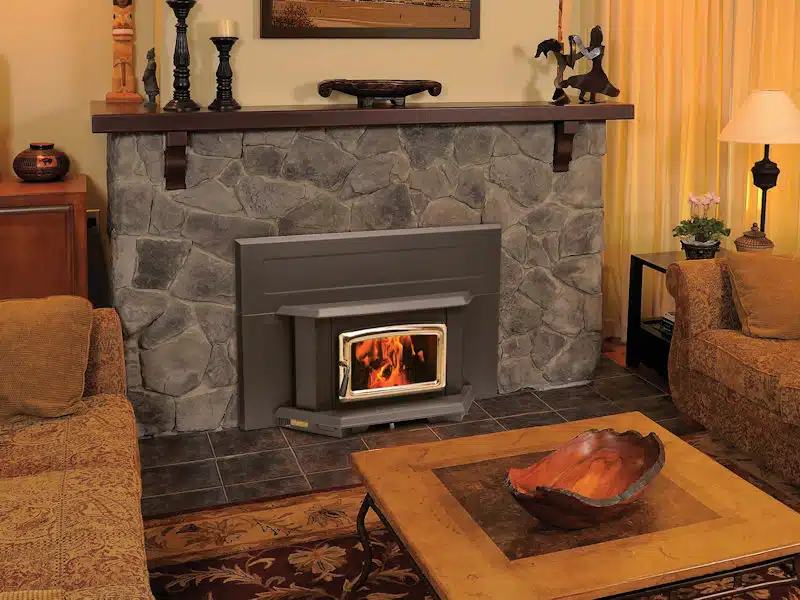

Pacific Energy Summit Wood Burning Fireplace Insert

For heating large spaces with a masonry or factory-built fireplace insert, the Summit Insert is the solution. The only insert with patented Extended Burn Technology, the Summit provides ten full hours of controlled burning, for a full night of wood-heated comfort. An efficient, clean-burning heat source, the Summit insert is easy to light and use, with a large window that provides a clear view of the flame. With a variable speed fan, clean-glass airwash technology and heavy-gauge overbuilt construction, the Summit will provide many years of comfort and enjoyment.

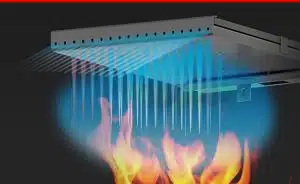

Baffle System
Pacific Energy is a recognized industry leader in “clean burn” technology, as exemplified in our unique high capacity baffle system for preheating secondary combustion air for re-burning. By burning the combustible elements in the air, we improve our stoves’ environmental performance while significantly reducing the amount of wood that is consumed.

The design and construction of our baffles is second to none: these removable hollow chambers are precisely formed and perforated to allow a continuous, controlled flow of secondary air—with no moving parts. Constructed from fully seam-welded 304 grade, non-ferrous stainless steel* they ensure efficient combustion of secondary air throughout the entire burn cycle. Like every component in a Pacific Energy stove or insert, they are guaranteed to perform for a lifetime.

Additional information

Fuel

Wood

Style

Traditional

BTUs

000, up to 99

Emissions

3.9 g/hr

Firebox-size

3 cu ft

Log-size

18"

Viewing-area

151 sq in

Width

25 3/8"

Height

22 15/16"

Depth

18"

Weight

465 lbs

Manufacturer

Pacific Energy

Cost

$$$

Pacific Energy | Summit Fireplace Insert

For heating large spaces with a masonry or factory-built fireplace insert, the Summit Insert is the solution.

Product Information
Summit  Wood Burning Fireplace Insert PDF

STANDARD FEATURES

  • EPA Certified
  • Reliable, durable non-catalytic technology
  • Air wash system for super clean ceramic glass
  • High-tech multi-port combustion air injection system
  • Inside and outside combustion air capable
  • Floating firebox for extended stove life
  • Easy and safe front to back fuel loading
  • Rich Metallic Black finish
  • 304 Stainless Steel baffle, insulation cover, rails and flame shield
  • Boost air for easy lighting
  • Extended Burn Technology (EBT)
  • Two 80 cfm temperature actuated variable speed blower/s
  • Cast iron warming shelf & ash lip
  • Single-Lever Air Control

Baffle System
Pacific Energy is a recognized industry leader in “clean burn” technology, as exemplified in our unique high capacity baffle system for preheating secondary combustion air for re-burning. By burning the combustible elements in the air, we improve our stoves’ environmental performance while significantly reducing the amount of wood that is consumed.

The design and construction of our baffles is second to none: these removable hollow chambers are precisely formed and perforated to allow a continuous, controlled flow of secondary air—with no moving parts. Constructed from fully seam-welded 304 grade, non-ferrous stainless steel* they ensure efficient combustion of secondary air throughout the entire burn cycle. Like every component in a Pacific Energy stove or insert, they are guaranteed to perform for a lifetime.

AirWash

Soot-covered fireplace glass? Not likely with a Pacific Energy stove or insert. Over 30 years ago, we pioneered the use of glass doors on free standing woodstoves. We followed that with the first effective airwash manifold system, a design that flows pre-heated air to the glass surface to keep it clean.

Over the years we have continued to refine our airwash design: it now creates a high-pressure zone in the center and forces air to flow from above and across the glass. Even at low air settings, we are confident that our airwash system is the most effective available. And that our glass doors are among the cleanest in the industry.
