Description

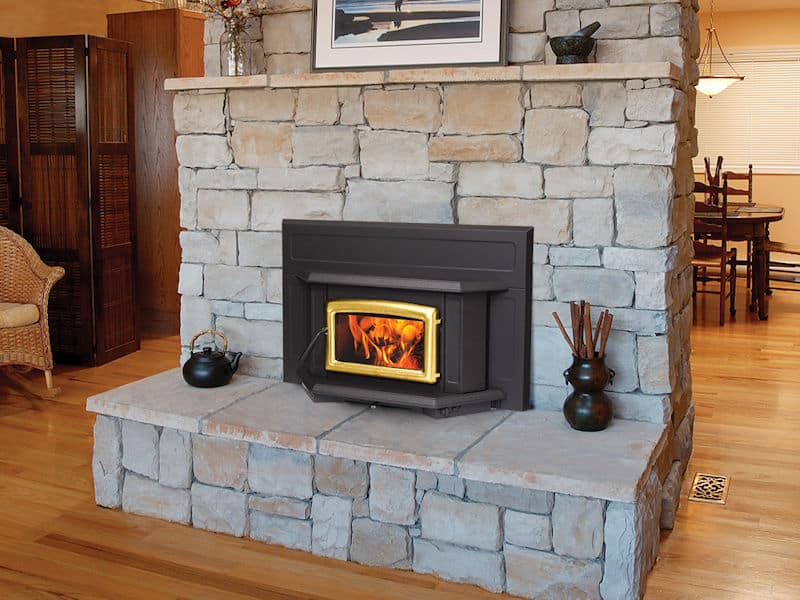

Pacific Energy Super Wood Burning Insert

The Super Wood Burning Insert offers same great features and performance of the Pacific Insert but with a more refined look and designed to fit tighter fireplaces. The Super Insert, with its large ceramic glass door, gives you the full comfort and view of your log fire. Transform your drafty fireplace into an easy-to-light, easy-to-load reliable source of heat with the convenience of one-touch adjustable temperature control.

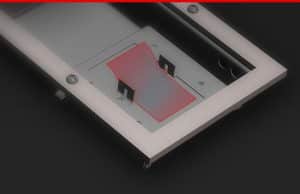

EBT2
Our second-generation Extended Burn Technology, or EBT2, precisely regulates secondary airflow based on vacuum created by the chimney for a longer, cleaner, more economical burn. This automatically adjusts the secondary combustion system, for a cleaner, more efficient burn and extended burn time.

Pacific Energy - Extended Burn

Additional information

Fuel

Wood

Style

Traditional

BTUs

000, up to 72

Emissions

3.4 g/hr

Firebox-size

2.1 cu ft

Log-size

18"

Viewing-area

122 sq in

Width

21 1/2"

Height

21"

Depth

28 1/8"

Manufacturer

Pacific Energy

Cost

$$$

Pacific Energy | Super Fireplace Insert

The Super Insert offers a more refined look and designed to fit tighter fireplaces.

Product Information:

Super Wood Burning Fireplace Insert PDF

STANDARD FEATURES

  • EPA Certified
  • Reliable, durable non-catalytic technology
  • Air wash system for super clean ceramic glass
  • High-tech multi-port combustion air injection system
  • Inside and outside combustion air capable

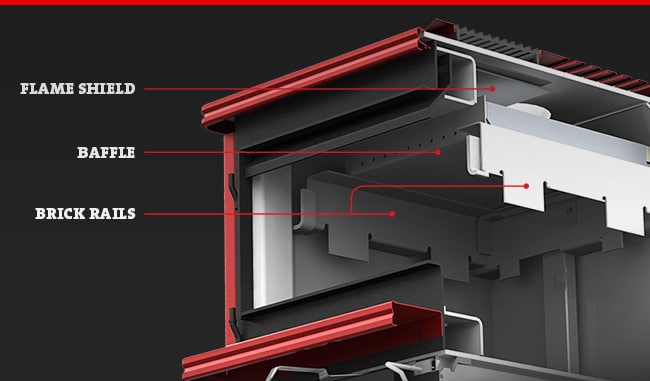

  • Floating firebox for extended stove life
  • Easy and safe front to back fuel loading
  • Rich Metallic Black finish
  • 304 Stainless Steel baffle, insulation cover, rails and flame shield
  • Boost air for easy lighting
  • Two 80 cfm temperature actuated variable speed blower/s

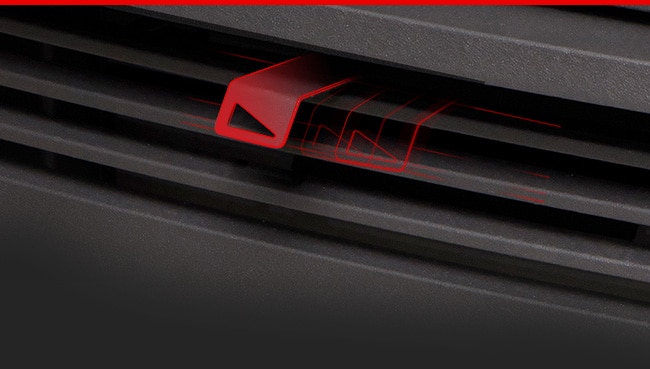

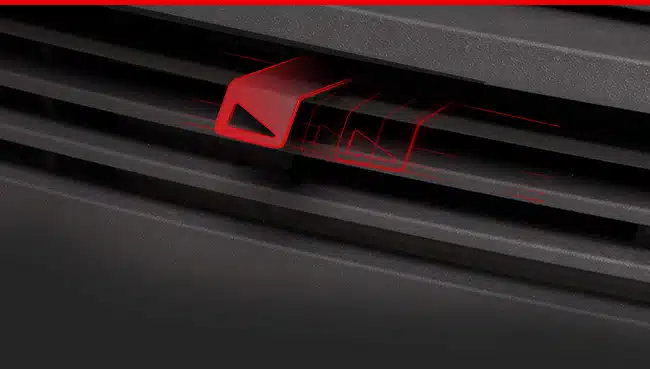

  • Single-Lever Air Control

Design Options:

  • Arched Door available in three finishes
  • Embossed Surround, Standard Size
  • Embossed Surround, Oversize
  • Flat Oversize Surround

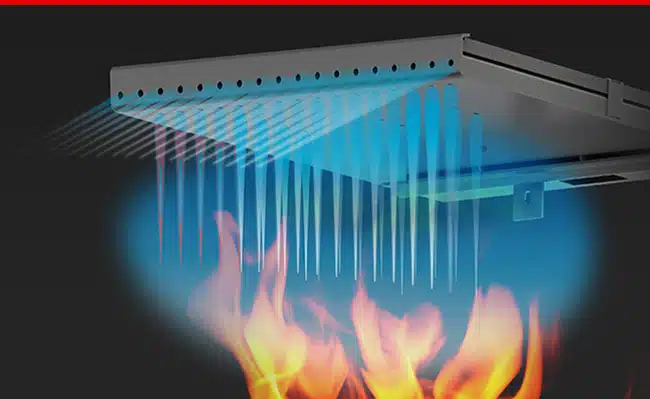

Baffle System
Pacific Energy is a recognized industry leader in “clean burn” technology, as exemplified in our unique high capacity baffle system for preheating secondary combustion air for re-burning. By burning the combustible elements in the air, we improve our stoves’ environmental performance while significantly reducing the amount of wood that is consumed.

The design and construction of our baffles is second to none: these removable hollow chambers are precisely formed and perforated to allow a continuous, controlled flow of secondary air—with no moving parts. Constructed from fully seam-welded 304 grade, non-ferrous stainless steel* they ensure efficient combustion of secondary air throughout the entire burn cycle. Like every component in a Pacific Energy stove or insert, they are guaranteed to perform for a lifetime.

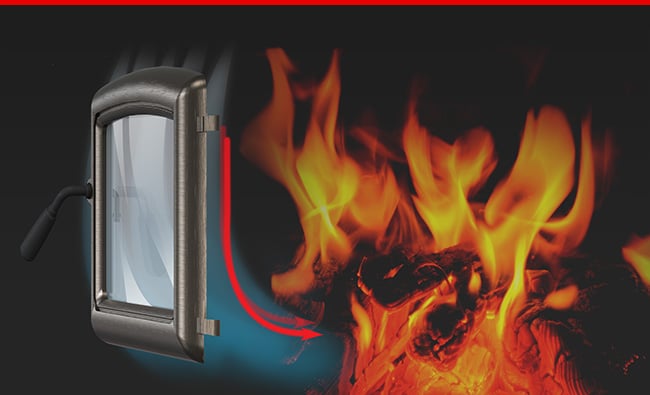

AirWash

Soot-covered fireplace glass? Not likely with a Pacific Energy stove or insert. Over 30 years ago, we pioneered the use of glass doors on free standing woodstoves. We followed that with the first effective airwash manifold system, a design that flows pre-heated air to the glass surface to keep it clean.

Over the years we have continued to refine our airwash design: it now creates a high-pressure zone in the center and forces air to flow from above and across the glass. Even at low air settings, we are confident that our airwash system is the most effective available. And that our glass doors are among the cleanest in the industry.
