Description

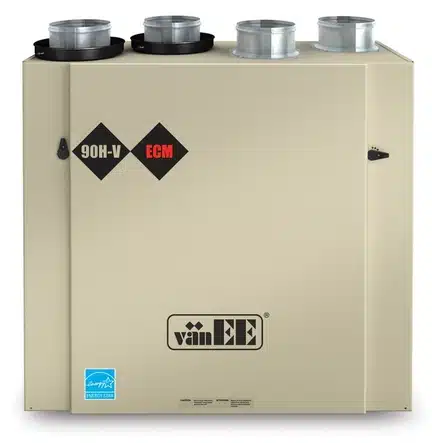

Silver Series – 90H-V ECM ERV

ECO-FRIENDLY AND ENERGY EFFICIENT!

The 90H-V ECM ERV  energy recovery ventilator incorporates extremely high performance motors, equivalent, in power consumption, to a compact fluorescent bulb (13.5 watts each), This significantly lowers energy costs while affecting their high performance.

So what is the difference between a Heat Recovery Ventilator and an Energy Recovery Ventilator?

In short, an Energy Recovery Core absorbs both heat and moisture from the air streams passing through it (without mixing). In the summer, the heat and humidity of the outdoor fresh air is transferred to the exhaust air stream, meaning your home stays cooler inside. In the winter, the opposite is true. This balanced system offers superior indoor air quality and excess humidity control.

When combined with the state-of-the-art programmable PLATINUM wall control, the 90H-V ECM ERV surpasses energy-saving standards while providing effective energy recovery and ventilation.

Additional information

Energy Efficiency

Up to 80% Heat Recovery, using as little as 30 Watts of power to operate the ECM blowers

Air Flow

40 – 157 Cubic Feet Per Minute (CFM)

Vanee Silver Series – 90H-V ECM ERV

ECO-FRIENDLY AND ULTRA EFFECTIVE HRV

Heat Recovery Ventilator with extremely high performance motors, equivalent, in power consumption, to a compact fluorescent bulb (13.5 watts each)

A NEW ERA BEGINS WITH THE VÄNEE 90H-V ECM ERV
ULTRA-EFFICIENT AND ENVIRONMENTALLYFRIENDLY
ENERGY RECOVERY VENTILATOR
The 90H-V ECM ERV has been designed to be one of the most
energy-efficient ERV air exchangers available on the market. Its
innovative design incorporates high performance ECM* motors which
consume significantly less electricity. ERVs are ideal for LEED®-certified
residential projects and other energy-efficient homes because they
recover the heat or coolness of the indoor air while helping to maintain
comfortable moisture levels inside the home.
• Perfect for drier homes using humidifiers in heating season and air
conditioning during cooling season
• Compact footprint allows an easy fit in restricted spaces
• No drain required**
• State-of-the-art ECM motors provide significant electrical
consumption savings
• 6” metal ports located on top of unit to simplify installation and
provide a cleaner appearance
• Integrated pressure taps and balancing dampers to quickly measure
and balance the air-flow
• Faster and easier installation of insulated flexible ducts with
practical straps
• Homeshield™ defrosting system (no negative pressure)
• ENERGY STAR® qualified: Ideal for high performance small to mid-size
homes
*Electronically Commutated Motor.
**For most climate zones.

90H-V ECM ERV – PDF
