Description

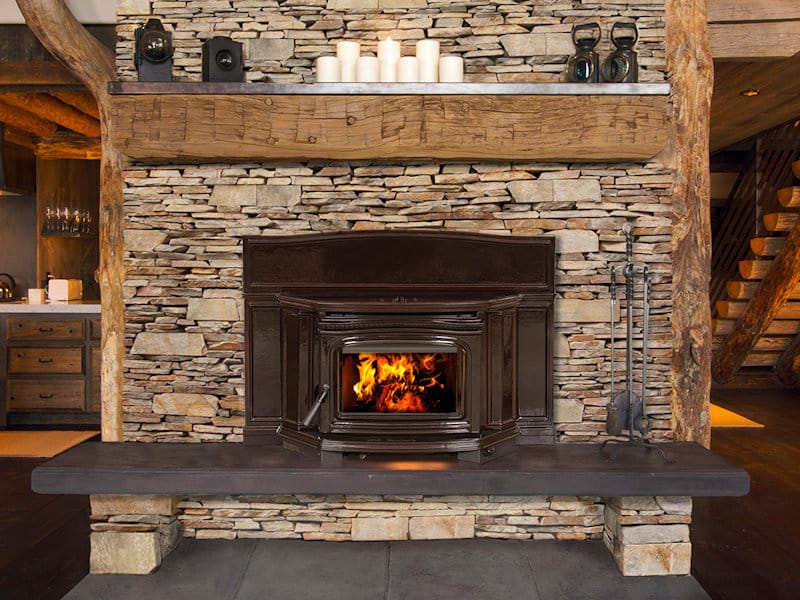

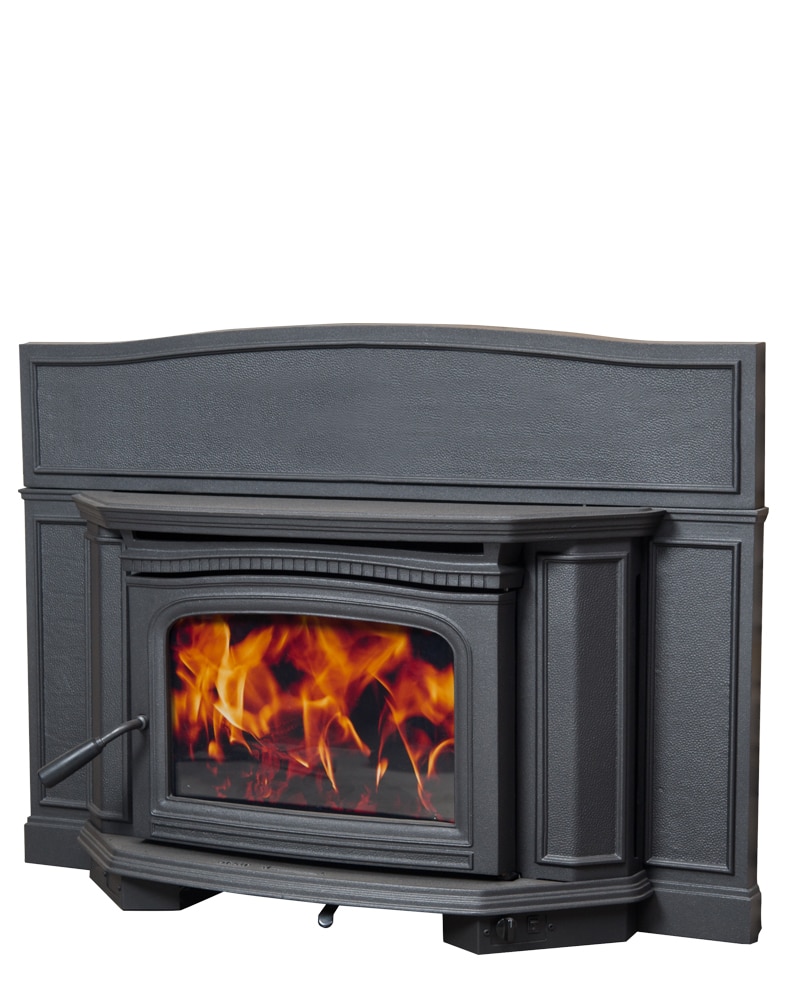

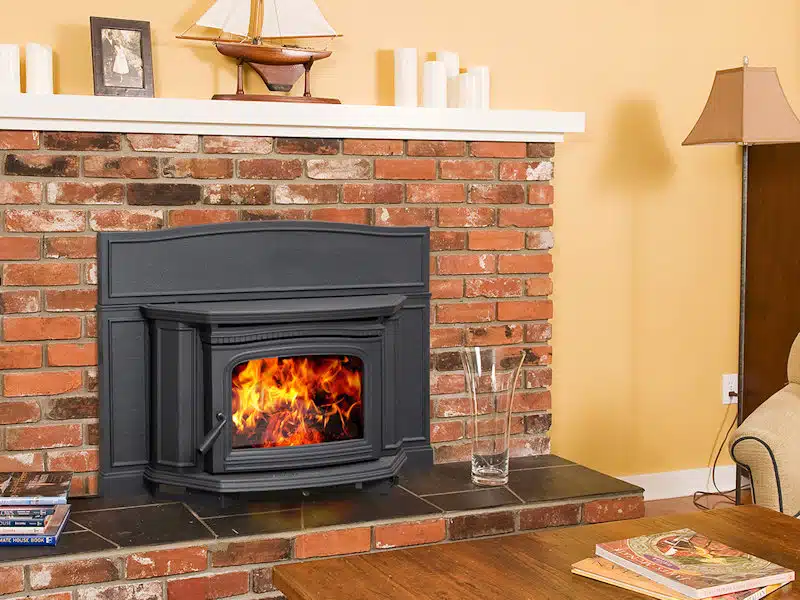

Pacific Energy Alderlea T5 Wood Burning Fireplace Insert

The Alderlea cast iron over steel insert allows you to transform your fireplace into an efficient heating system with traditional cast iron styling. Like all Pacific Energy inserts, it’s easy to light, easy to use, and provides a clear view of the flame. With a variable speed fan, clean-glass airwash technology and heavy-gauge overbuilt construction, the T5 Insert will provide many years of comfort and enjoyment.

Cast Iron Over Steel
Pacific Energy Cast Iron Wood InsertUntil we pioneered the Alderlea line, and its revolutionary iron-wrapped steel firebox, a cast-iron stove was just that: cast iron. The Alderlea design makes the most of each metal: the steel stove and floating firebox is free to expand and contract, and its design maximizes convective heat efficiency, while the cast iron wrapping provides radiant heat. This superior system greatly extends longevity over an all cast stove. Metal fatigue is no longer a factor, allowing us to offer the industry’s first lifetime warranty on a cast stove.

Additional information

Fuel

Wood

Style

Traditional

BTUs

000, 72

Emissions

3.4 g/hr

Firebox-size

2.2 cu ft

Log-size

18"

Viewing-area

196 sq in

Width

24"

Height

21 9/16"

Depth

17 13/16"

Manufacturer

Pacific Energy

Cost

$$$

Pacific Energy | Alderlea T5 Fireplace Insert

Transform your fireplace into an efficient heating system—with traditional cast iron styling—with the T5 Insert.

Product Information
Alderlea T5 Wood Burning Fireplace Insert – PDF

STANDARD FEATURES

  • EPA Certified
  • Reliable, durable non-catalytic technology
  • Air wash system for super clean ceramic glass
  • High-tech multi-port combustion air injection system
  • Inside and outside combustion air capable
  • Floating firebox for extended stove life
  • Rich Metallic Black finish
  • 304 Stainless Steel baffle, insulation cover, rails and flame shield
  • Boost air for easy lighting
  • Two 80 cfm temperature actuated variable speed blower/s
  • Single-Lever Air Control

Baffle System
Pacific Energy is a recognized industry leader in “clean burn” technology, as exemplified in our unique high capacity baffle system for preheating secondary combustion air for re-burning. By burning the combustible elements in the air, we improve our stoves’ environmental performance while significantly reducing the amount of wood that is consumed.

The design and construction of our baffles is second to none: these removable hollow chambers are precisely formed and perforated to allow a continuous, controlled flow of secondary air—with no moving parts. Constructed from fully seam-welded 304 grade, non-ferrous stainless steel* they ensure efficient combustion of secondary air throughout the entire burn cycle. Like every component in a Pacific Energy stove or insert, they are guaranteed to perform for a lifetime.

AirWash

Soot-covered fireplace glass? Not likely with a Pacific Energy stove or insert. Over 30 years ago, we pioneered the use of glass doors on free standing woodstoves. We followed that with the first effective airwash manifold system, a design that flows pre-heated air to the glass surface to keep it clean.

Over the years we have continued to refine our airwash design: it now creates a high-pressure zone in the center and forces air to flow from above and across the glass. Even at low air settings, we are confident that our airwash system is the most effective available. And that our glass doors are among the cleanest in the industry.
