Description

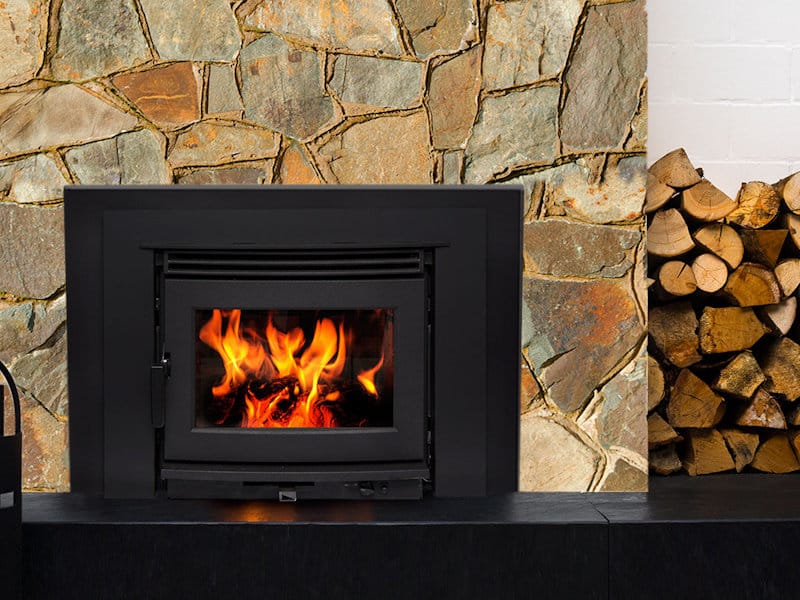

Pacific Energy NEO 2.5 Wood Burning Fireplace Insert

Transform an energy-wasting fireplace into a cost-saving source of heat without sacrificing the comfort and appeal of a wood fire. The Neo 2.5 wood insert accommodates larger existing masonry fireplace and features Pacific Energy’s trusted industry leading construction, boost air for easy lighting and one-lever air control for simple operation and burning efficiency. With all the features of the Neo 1.6 in a larger, higher-output format, the Neo 2.5 insert delivers exceptional performance and durability.

Pacific Energy NEO Wood Insert

Additional information

Fuel

Wood

Style

Traditional

BTUs

000, up to 80

Emissions

2.9 g/hr

Firebox-size

2.5 cu ft

Log-size

18"

Viewing-area

166 sq in

Width

33"

Height

21 1/2"

Depth

20"

Weight

420 lbs

Manufacturer

Pacific Energy

Cost

$$$

Pacific Energy | NEO 2.5 Fireplace Insert

Transforms an energy-wasting fireplace into a cost-saving source of heat, without sacrificing the comfort and appeal of the home fire.

Product Information
Neo 2.5 Wood Burning Fireplace Insert PDF

STANDARD FEATURES

  • EPA Certified
  • Reliable, durable non-catalytic technology
  • Air wash system for super clean ceramic glass
  • High-tech multi-port combustion air injection system
  • Inside and outside combustion air capable
  • Floating firebox for extended stove life
  • Rich Metallic Black finish
  • 304 Stainless Steel baffle, insulation cover, rails and flame shield
  • Boost air for easy lighting
  • Extended Burn Technology (EBT)
  • Two 45 cfm temperature actuated variable speed blower/s
  • Single-Lever Air Control
  • Integrated Heat Exchanger
  • East-West loading
  • Removable flue collar for ease of installation

Baffle System
Pacific Energy is a recognized industry leader in “clean burn” technology, as exemplified in our unique high capacity baffle system for preheating secondary combustion air for re-burning. By burning the combustible elements in the air, we improve our stoves’ environmental performance while significantly reducing the amount of wood that is consumed.

The design and construction of our baffles is second to none: these removable hollow chambers are precisely formed and perforated to allow a continuous, controlled flow of secondary air—with no moving parts. Constructed from fully seam-welded 304 grade, non-ferrous stainless steel* they ensure efficient combustion of secondary air throughout the entire burn cycle. Like every component in a Pacific Energy stove or insert, they are guaranteed to perform for a lifetime.

AirWash

Soot-covered fireplace glass? Not likely with a Pacific Energy stove or insert. Over 30 years ago, we pioneered the use of glass doors on free standing woodstoves. We followed that with the first effective airwash manifold system, a design that flows pre-heated air to the glass surface to keep it clean.

Over the years we have continued to refine our airwash design: it now creates a high-pressure zone in the center and forces air to flow from above and across the glass. Even at low air settings, we are confident that our airwash system is the most effective available. And that our glass doors are among the cleanest in the industry.
