Description

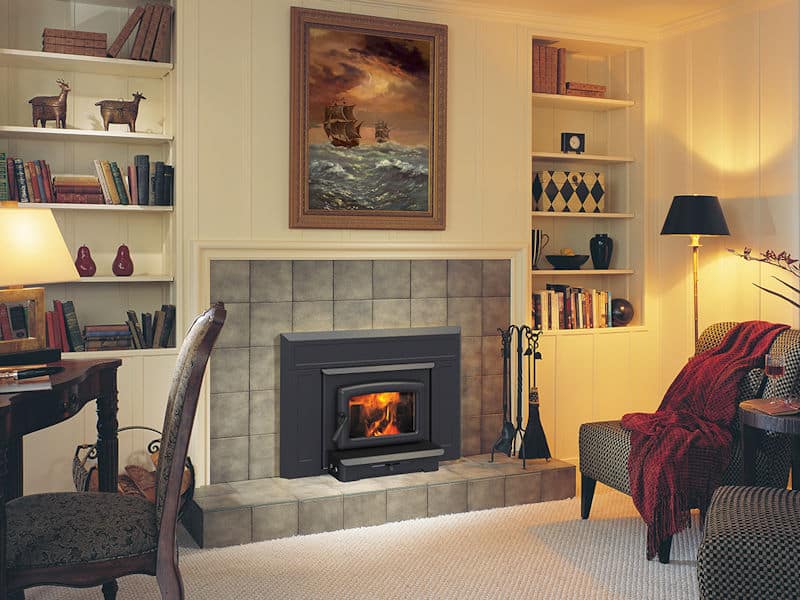

Pacific Energy Vista Wood Burning Fireplace Insert

For woodstove heating in smaller masonry or factory-built fireplaces, choose the Vista Insert. Designed to deliver efficient combustion and controlled heat, it raises the burn temperature while extending the burn time, providing more heat from less fuel. Like all Pacific Energy inserts it’s easy to light, easy to use, and provides a clear view of the flame. With a variable speed fan, clean-glass airwash technology and heavy-gauge overbuilt construction, the Vista will provide many years of comfort and enjoyment.

Additional information

Fuel

Wood

Style

Traditional

BTUs

000, up to 56

Emissions

2.9 g/hr

Firebox-size

1.5 cu ft

Log-size

16"

Viewing-area

103 sq in

Width

23 1/4"

Height

19 3/4"

Depth

14 1/2"

Weight

266 lbs

Manufacturer

Pacific Energy

Cost

$$

Pacific Energy | Vista Fireplace Insert

For woodstove heating in smaller masonry or factory-built fireplaces, choose the Vista Insert.

Product Information:

Vista Wood Burning Fireplace Insert PDF

STANDARD FEATURES

  • EPA Certified
  • Reliable, durable non-catalytic technology
  • Air wash system for super clean ceramic glass
  • Floating firebox for extended stove life
  • Heavy plate-steel top under decorative top
  • Steel Baffle and 304 Stainless Steel Insulation cover
  • Boost air for easy lighting
  • 80 cfm temperature actuated variable speed blower
  • Single-Lever Air Control

Design Options:

  • Arched Door available in three finishes
  • Embossed Surround, Standard Size
  • Embossed Surround, Oversize
  • Flat Oversize Surround

Baffle System
Pacific Energy is a recognized industry leader in “clean burn” technology, as exemplified in our unique high capacity baffle system for preheating secondary combustion air for re-burning. By burning the combustible elements in the air, we improve our stoves’ environmental performance while significantly reducing the amount of wood that is consumed.

The design and construction of our baffles is second to none: these removable hollow chambers are precisely formed and perforated to allow a continuous, controlled flow of secondary air—with no moving parts. Constructed from fully seam-welded 304 grade, non-ferrous stainless steel* they ensure efficient combustion of secondary air throughout the entire burn cycle. Like every component in a Pacific Energy stove or insert, they are guaranteed to perform for a lifetime.

AirWash

Soot-covered fireplace glass? Not likely with a Pacific Energy stove or insert. Over 30 years ago, we pioneered the use of glass doors on free standing woodstoves. We followed that with the first effective airwash manifold system, a design that flows pre-heated air to the glass surface to keep it clean.

Over the years we have continued to refine our airwash design: it now creates a high-pressure zone in the center and forces air to flow from above and across the glass. Even at low air settings, we are confident that our airwash system is the most effective available. And that our glass doors are among the cleanest in the industry.
